392Product Description:

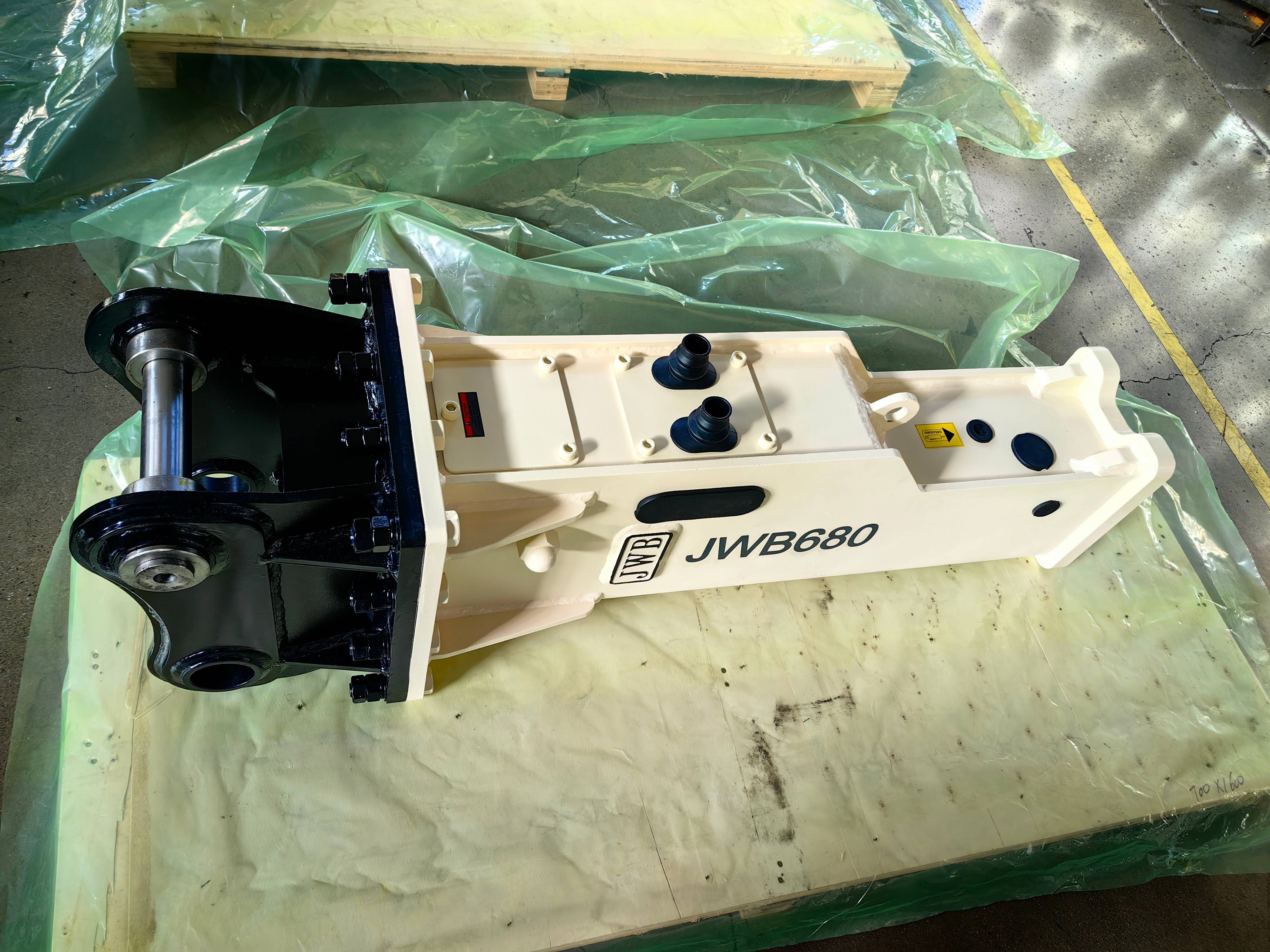

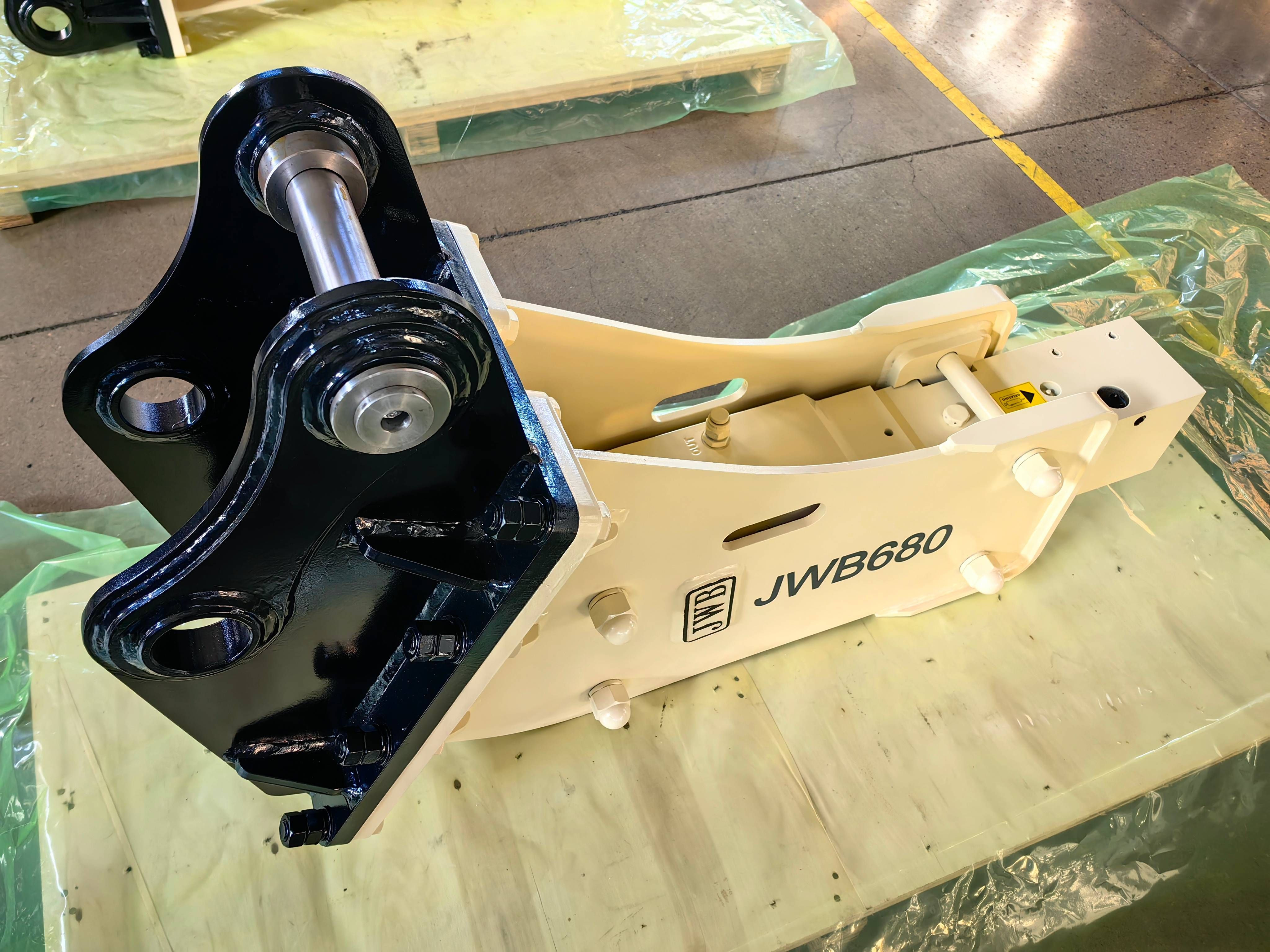

JWB680 (SB40)Hydraulic Breaker ( Side type / Box-silenced type / Top type / Banana Type ) is suitable for Skid Steer Loader, Backhoe Loader and mini-excavator 4Ton - 7 Ton.
| Specification | UNIT | JWB680 |
| Suitable Excavator | Ton | 4-7 |
| Chisel/Tool/Rod Diameter |
mm | 68 |
| Total Weight | KG | 345 |
| Operating Pressure | kg/m2 | 110-140 |
| Oil Flow Range | l/min | 40-70 |
| Impact Frequency | bpm | 500-900 |
| Impact Energy Class | J | 800 |
| Valve Type | I/E | Internal |
| Accumulator | Y/N | N |
| Diameter of Hose | inch | 1/2 |
